AC1226 | IFM electronic
Power supply, 29.5 to 31.6 VDC, 2.8 A, 85 W, AC1226
Order No.: 82P8960
EAN: 4021179002219
MPN:
AC1226
Unit Price (€ / pc.)
520.6131 € *
Standard delivery time from the manufacturer is: 1 Week

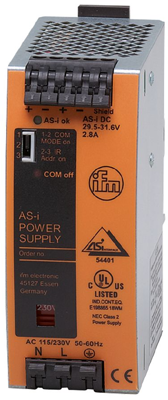

AS-Interface power supply, AC1226, IFM electronic
AS-Interface power supply, Reliably power supply for modules, sensors and actuators.
Features
- High noise immunity and sufficient power reserves for the compensation of current peaks
- Safe decoupling of interferences from the primary supply
- Particularly space-saving design
- Low heating of the control cabinet due to high efficiency
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 2.8 A | |
| Height | 131 mm | |
| Degree of protection (IP) | IP20 | |
| efficiency | 88 % | |
| Output voltage DC | 29.5 to 31.6 VDC | |
| Power | 85 W | |
| Input voltage AC | 85-132 VAC, 184-264 VAC | |
| Depth | 109 mm | |
| Width | 49 mm | |
| Number of outputs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
