AC1212 | IFM electronic
Power supply, 29.5 to 31.6 VDC, 4 A, 85 W, AC1212
Order No.: 82P8961
EAN: 4021179002158
MPN:
AC1212
Unit Price (€ / pc.)
991.6627 € *
Standard delivery time from the manufacturer is: 1 Week

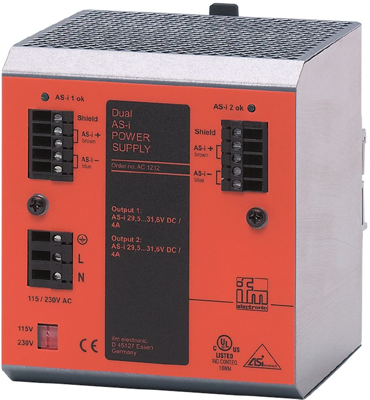

AS-Interface power supply, AC1212, IFM electronic
AS-Interface power supply, Reliably power supply for modules, sensors and actuators.
Features
- High noise immunity and sufficient power reserves for the compensation of current peaks
- Safe decoupling of interferences from the primary supply
- Particularly space-saving design
- Low heating of the control cabinet due to high efficiency
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP20 | |
| Depth | 118.5 mm | |
| Output voltage DC | 29.5 to 31.6 VDC | |
| Output current | 4 A | |
| Width | 120 mm | |
| Height | 134 mm | |
| Power | 85 W | |
| Number of outputs | 2 | |
| efficiency | 89 % | |
| Input voltage AC | 88-132 VAC, 184-264 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
