DF1208 | IFM electronic

Fuse, electronic, 8 A, 24 V (DC), push-in, DIN rail, IP20, DF1208

Order No.: 82P1401
EAN: 4021179309011
MPN:
DF1208

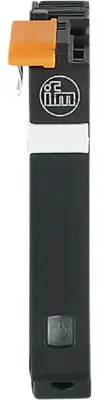

DF1208 IFM electronic Device Circuit Breakers Image 1

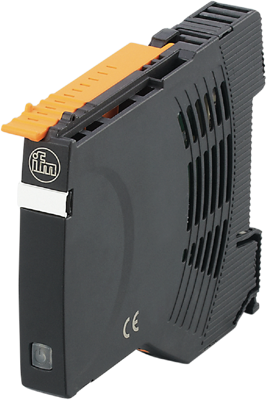

DF1208 IFM electronic Device Circuit Breakers Image 2

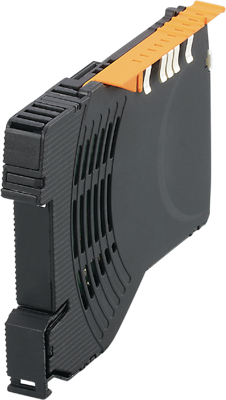

DF1208 IFM electronic Device Circuit Breakers Image 3
Image may differ
Unit Price (€ / pc.)
83.1691 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
83.17 € *
Price list
Quantity
Price per unit*
1 pcs.
83.1691 €
3 pcs.
79.5634 €
5 pcs.
76.2552 €
*incl. VAT plus shipping costs
Subject to prior sale

Electronic circuit breaker, DF1208, IFM electronic

Features

  • For the permanent monitoring of the 24 V secondary circuit
  • Reliable switch-off in case of a fault
  • Modular and selective protection of machinery and plant
  • Clearly visible LED for indicating capacity utilisation, tripping and operation
  • Simple side-by-side installation due to flap mechanism
Technical specifications
Filter Property Value
Actuator push button
Degree of protection (IP) IP20
Rated current 8 A
Version electronic
Connection push-in
Rated voltage (DC) 24 V
Type of mounting DIN rail
Product type fuse
Logistics
Property Value
Customs tariff number 85363010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
