AC2729 | IFM electronic
AC2729, AS-i PCB, PNP, AS-i pcb 2-DI/1-DO, cable,infrared light, Lens type standard, (28 x 21)...(
Unit Price (€ / pc.)
192.1017 € *
Standard delivery time from the manufacturer is: 1 Week

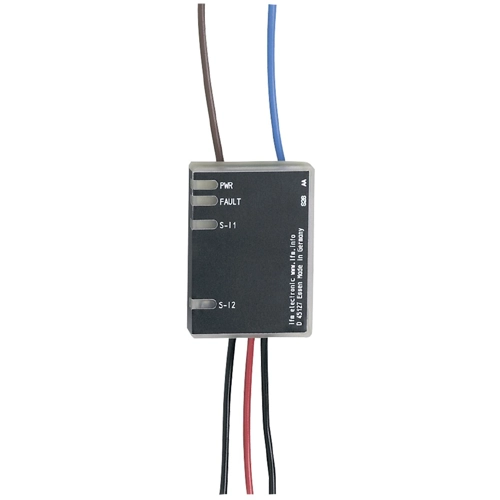

AS-Interface PCB module, AC2729, IFM electronic
AS-Interface PCB module for installation in small housings, control cabinets and operator panels.
Features
- Simple and fast wiring by means of wire strands
- Space-saving design
- For integration of mechanical switches into AS-i networks
- AS-i connection for three control and signaling devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of inputs | 2 | |
| AS-i-Specification | 2.1, 3.0 | |
| Voltage | 26.5-31.6 VDC | |
| Product type | AS-Interface module | |
| Version | PNP, connection cable 0.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
