SA2E-BP3C | IDEC
Reflecting light barrier, 10-350 mm, PNP, 10-30 VDC, M8-connector, IP67, SA2E-BP3C
Unit Price (€ / pc.)
103.7799 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,037.80 € *
Price list
Quantity
Price per unit*
10 pcs.
103.7799 €
50 pcs.
100.0552 €
100 pcs.
96.3424 €
*incl. VAT plus shipping costs
Subject to prior sale

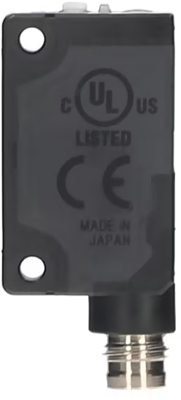

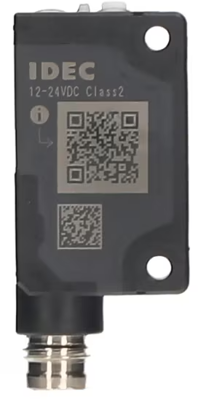

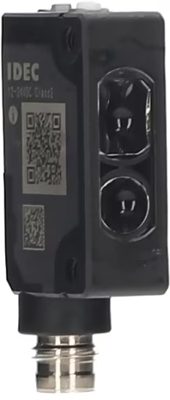

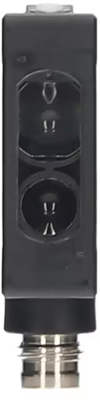

Photoelectric sensor, SA2E-BP3C, IDEC
The SA2E-BP3C is a photoelectric sensor, background suppression with sensing range adjustment. This product ignores background and reliably detects workpieces. Not easily affected by the color of the workpiece and edges can be accurately detected by narrow beams.
Features
- 0.5 ms response time
- High-speed detection
- Beam diameter enables accurate detection of various objects
- Air blower unit allows stable detection in dusty environment
- Output reverse-polarity protection circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Activation time | 500 s | |
| Voltage | 10-30 VDC | |
| Output | PNP | |
| Connection | M8-connector | |
| Product type | light barrier | |
| Detecting distance | 10-350 mm | |
| Power supply | 100 mA | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
