YW1L-V4E01Q4R | IDEC
Emergency stop, turn/pull release, mounting Ø 22 mm, unlit, 120 V, 1 Form B (N/C), YW1L-V4E01Q4R
Unit Price (€ / pc.)
22.4910 € *
Available: 10 pcs.
Total Price:
22.49 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4910 €
10 pcs.
21.7056 €
50 pcs.
20.9083 €
100 pcs.
20.1229 €
*incl. VAT plus shipping costs
Subject to prior sale

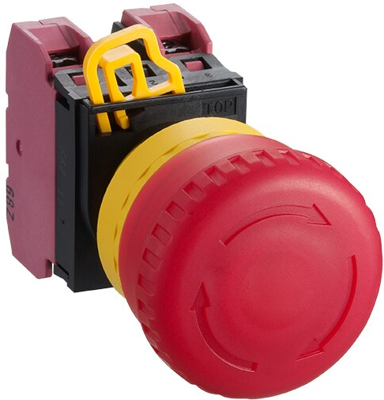

Emergency stop button, YW1L-V4E01Q4R, IDEC
The YW1L-V4E01Q4R is an illuminated push-button switch with space-saving. This product has 10 mm thick contact block that separates and makes installation and removal easier.
Features
- Compact and light-weight
- Safety lock mechanism
- Direct opening action
- Safe pushbutton design
- Self-Cleaning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | latching | |
| Rated voltage | 120 V | |
| Latching switching function | 1 Form B (N/C) | |
| Degree of protection (IP) | IP65 | |
| Type of mounting | panel mounting | |
| Resetting | turn/pull release | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| illuminated | No | |
| Height | 32.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
