XW1E-LV3SG02Q4R | IDEC

Emergency stop, turn/pull release, mounting Ø  22 mm, illuminated, 2 Form B (N/C), XW1E-LV3SG02Q4R

Order No.: 12G1432
MPN:
XW1E-LV3SG02Q4R
Series: E-Stop 50

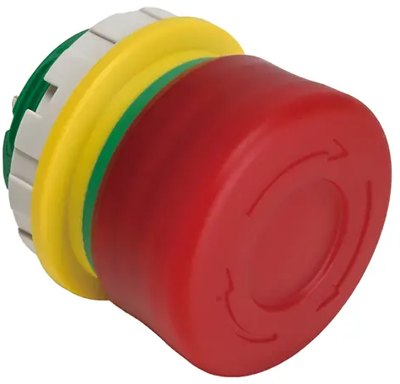

XW1E-LV3SG02Q4R IDEC Emergency Stop
Image may differ
Unit Price (€ / pc.)
28.9765 € *
Available: 20 pcs.
Total Price:
28.98 € *
Price list
Quantity
Price per unit*
1 pcs.
28.9765 €
5 pcs.
27.5961 €
10 pcs.
25.9539 €
20 pcs.
24.5021 €
*incl. VAT plus shipping costs
Subject to prior sale

Emergency stop switch, XW1E-LV3SG02Q4R, IDEC

Illuminated emergency stop switch, 22 mm short body, 2NC contact.

Features

  • Protection degree IP65, IP67, (IEC60529) and IP69K (ISO20653)
  • UL Type 4X Rated
  • Mechanical Life: 250.000 times min.
Technical specifications
Filter Property Value
Latching switching function 2 Form B (N/C)
Installation diameter 22 mm
Contact function latching
Degree of protection (IP) IP65
Collar shape of the front frame round
illuminated Yes
Resetting turn/pull release
Type of mounting panel mounting
Logistics
Property Value
Customs tariff number 85369095
Country of origin JP
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
