XA1E-BV303R | IDEC
Emergency stop, turn/pull release, mounting Ø 16 mm, unlit, 250 V, 3 Form B (N/C), XA1E-BV303R
Unit Price (€ / pc.)
69.8649 € *
Available: 7 pcs.
Total Price:
69.86 € *
Price list
Quantity
Price per unit*
1 pcs.
69.8649 €
10 pcs.
67.8062 €
50 pcs.
65.7475 €
100 pcs.
63.6888 €
*incl. VAT plus shipping costs
Subject to prior sale

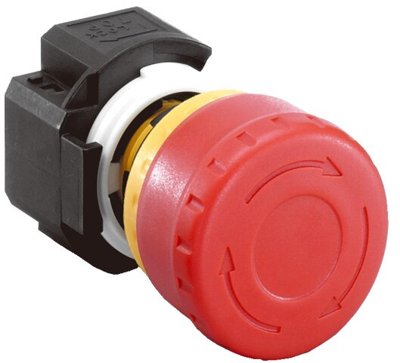

Emergency stop switch, XA1E-BV303R, IDEC
XA1E-BV303R is a mushroom, non-illuminated emergency stop switch. Pushlock pull/turn feature means it's locked when pressed, and reset when pulled or turned clockwise. “Safe break action” ensures that the NC contacts open when the contact block is detached from the operator.
Features
- Direct opening action mechanism
- Safety lock mechanism
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 3 Form B (N/C) | |
| Resetting | turn/pull release | |
| Type of mounting | panel mounting | |
| Degree of protection (IP) | IP65 | |
| Rated voltage | 250 V | |
| illuminated | No | |
| Collar shape of the front frame | round | |
| Contact function | latching | |
| Installation diameter | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
