XA1E-BV302R | IDEC
Emergency stop, turn/pull release, mounting Ø 16 mm, unlit, 250 V, 2 Form B (N/C), XA1E-BV302R
Unit Price (€ / pc.)
51.6698 € *
Available: 4 pcs.
Total Price:
51.67 € *
Price list
Quantity
Price per unit*
1 pcs.
51.6698 €
10 pcs.
49.7420 €
50 pcs.
47.8261 €
100 pcs.
45.8983 €
*incl. VAT plus shipping costs
Subject to prior sale

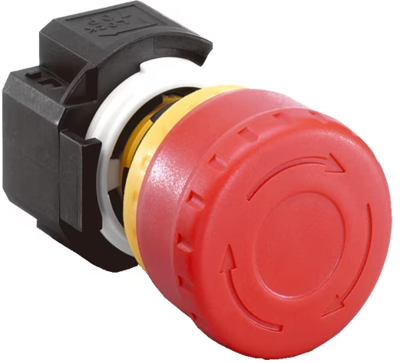

Emergency stop switch, XA1E-BV302R, IDEC
XA1E-BV302R is a mushroom, non-illuminated emergency stop switch. Pushlock pull/turn feature means it's locked when pressed, and reset when pulled or turned clockwise. “Safe break action” ensures that the NC contacts open when the contact block is detached from the operator.
Features
- Direct opening action mechanism
- Safety lock mechanism
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of mounting | panel mounting | |
| Collar shape of the front frame | round | |
| Degree of protection (IP) | IP65 | |
| Contact function | latching | |
| Rated voltage | 250 V | |
| Latching switching function | 2 Form B (N/C) | |
| Resetting | turn/pull release | |
| Installation diameter | 16 mm | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
