YW1K-2AE10 | IDEC
Key switch, unlit, latching, 1 Form A (N/O), waistband round, front ring metallized, 2 x 90°, mounting Ø 22 mm, YW1K-2AE10
Unit Price (€ / pc.)
22.1102 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
221.10 € *
Price list
Quantity
Price per unit*
10 pcs.
22.1102 €
50 pcs.
20.9797 €
100 pcs.
19.8492 €
*incl. VAT plus shipping costs
Subject to prior sale

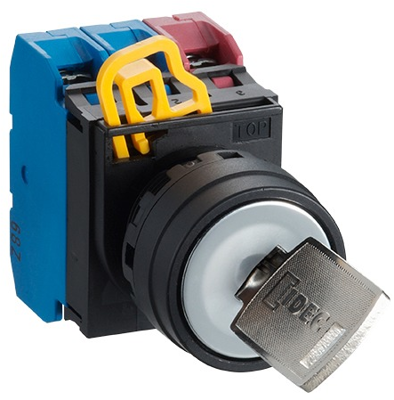

Key switch, YW1K-2AE10, IDEC
The YW1K-2AE10 is a key switch with space-saving. This product has 10 mm thick contact block that separates and makes installation and removal easier.
Features
- Compact and light-weight
- Innovative design
- Self-Cleaning
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation height | 24 mm | |
| can be illuminated | No | |
| Rotation angle | 2 x 90° | |
| Protection class | IP65 | |
| Installation diameter | 22 mm | |
| Front ring colour | metallized | |
| Latching switching function | 1 Form A (N/O) | |
| Connection | screw connection | |
| Product type | key switch | |
| Collar shape of the front frame | round | |
| Contact function | latching | |
| Installation depth | 45.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
