Smart Tweezers ST-5S
Unit Price (€ / pc.)
434.35 € *
Available: 1 pcs.
SMD measuring tweezer, ST5-S, ideal-tek

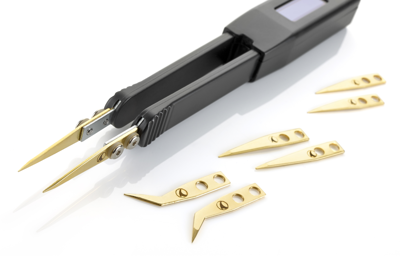

Smart Tweezers ST-5S is a handheld electronic tool of a new concept.
Its unique design combines a pair of gold-plated SMD tweezers with ergonomic shielded handles and a precise full featured LCR impedance meter in a compact, lightweight instrument.

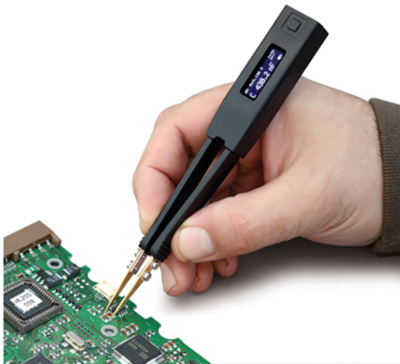

Smart Tweezers™ measures electronic component's capacitance, resistance and inductance with high speed and precision by evaluating circuit impedance. It is a perfect solution for testing and identification of Surface Mount Devices (SMD) as well as for troubleshooting of complex electronic systems.
High Speed, High Precision LCR Meter.
Wide measurement range starting from 0.5pF, 0.5μH and 50mΩ

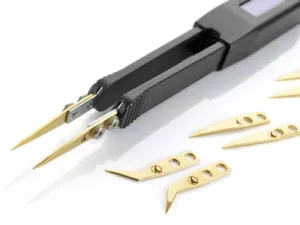

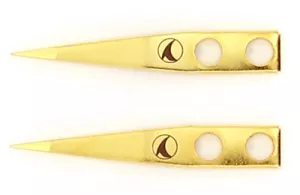

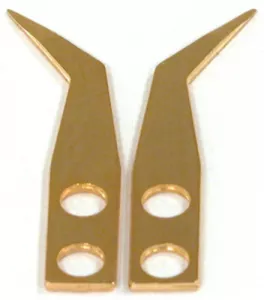

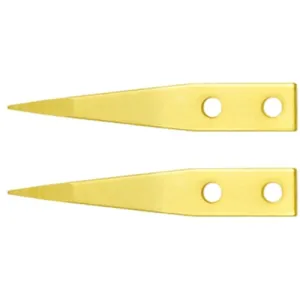

With automatic component identification, replaceable gold-plated tips
Technical data
- Resistance: 0.5 ohm to 9.9 Mohm
- Capacitance: 0.5 pF to 4999 µF
- Inductance: 0.5 µH to 999 mH
- Q factor: 0.001 to 1000
- Loss factor: 0.001 to 1000
- Operating temperatures: 0 to +50 °C
- Dimensions: 150 x 18 x 15 mm
- Weight: 29 g
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Measuring frequencies | 100 Hz-10 kHz | |
| Resistance Range | 50 mΩ to 9.9 MΩ | |
| Capacity range | 0.5 pF to 4999 µF | |
| Inductance range | 500 nH-999 mH | |
| Product type | LCR tweezers |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CA |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
