LCR tweezer, 100 Hz-10 kHz, 0.5 pF to 4999 µF, B-ST5S-K6PICF.IT
Order No.: 99K0122
EAN: 4099891458164
MPN:
B-ST5S-K6PICF.IT
Smart Tweezers Bundle
Series: Smart Tweezers
This item is no longer available.
As an alternative, we recommend the following item:
LCR-Meter, B-ST5S-K6PICF.IT, ideal-tek

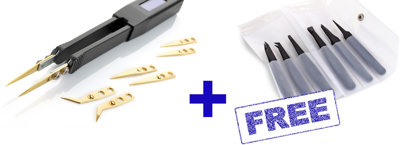

The B-ST5S-K6PICF.IT is a smart tweezer that simplifies testing and troubleshooting process. Resistance, capacitance and inductance can be measured with automatic selection of the test parameters and range.
Features
- Anti-magnetic anti-acid stainless steel
- Built-in high-precision LCR probe
- Convenient one-hand operation
- Ideal for surface mount devices
- Automated component identification
- Precise test leads
- Diode polarity/short testing
- Built-in Li-Ion battery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resistance Range | 0.05 Ω to 9.9 MΩ | |
| Measuring frequencies | 100 Hz-10 kHz | |
| Inductance range | 0.5 µH-999 mH | |
| Product type | LCR tweezers | |
| Capacity range | 0.5 pF to 4999 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CA |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
