Digital time switch SC 88.20 pro4
Order No.: 06N8493
EAN: 4022709241047
MPN:
SC 88.20 PRO4 110-230 V
24104
Unit Price (€ / pc.)
179.2616 € *
Standard delivery time from the manufacturer is: 1 Week

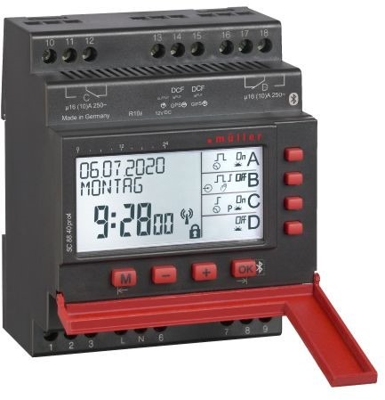

Digital time switch, SC 88.20 PRO4, MÜLLER
Daily and weekly program, for manifold installation and wall mounting.
The device can be used in illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, as well plants and machinery to simulate presence.
Features
- Programmable with PC or Smartphone via Bluetooth (free iOS, Android and Windows app)
- No additional Data stick needed! Bluetooth integrated in time switch
- Exchangeable battery with 10 years battery reserve
- Optimized own consumption (only 0.3 W in "standby mode")
- Random function for presence simulation
- Quick and intuitive programming
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Function | daily/weekly program | |
| Rated voltage | 230 V | |
| Display | Yes | |
| Number of channels | 2 | |
| Assembly | DIN rail | |
| Degree of protection (IP) | IP20 | |
| Version | time switch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 91070000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
