SC 08.11 PRO 230 V | Hugo Müller

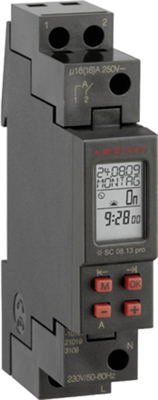

Programmable time switch, SC 08.11 PRO 230 V
Programmable timers, type Müller SC 08.1.. pro.

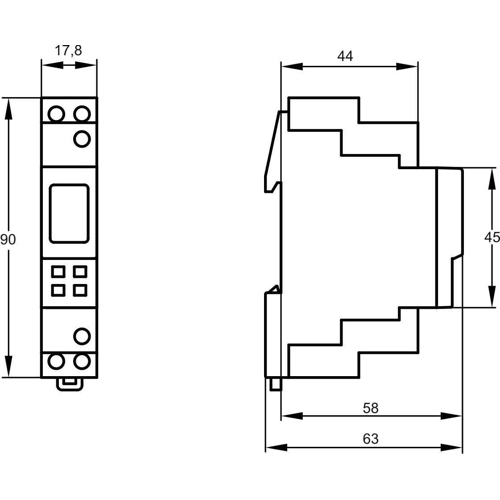

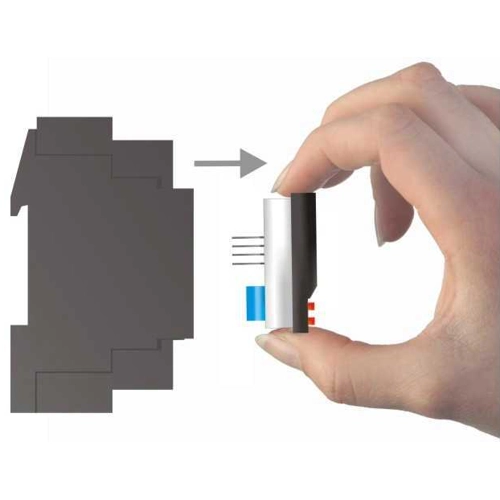

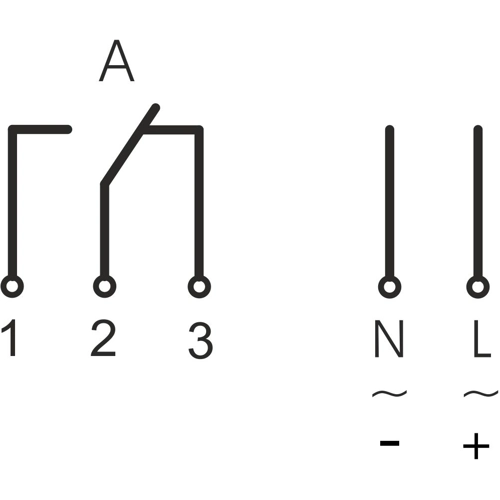

For installation in distribution boards, daily and weekly program, manual override, automatic sorting of activation times during reading, user-specific block programming, permanent activation mode based on the date/holiday program, manual permanent activation, automatic daylight saving time, operating hours and pulse counter, security through PIN coding, LCD with 2 text rows, removable operating panel, text-based user menu, self-explanatory pictograms; Operating voltage: 230 V, 50/60 Hz. Power consumption: 0.7 W. Channel (electrically isolated): 1 x NO (opening gap < 3.0 mm). Breaking capacity: 16 A/250 VAC. Shortest switching interval: 1.0 min. Power reserve: approx. 6 years. Ambient temperatures: –30 to +50 °C. Dimensions (W x H x DT): 17.5 x 45 x 58 mm. Connection type: screw terminals (elevator type).
Type SC 08.11 pro.
As above; Switching functions: ON/OFF, permanent, pulse, holiday program
Type: SC 08.11 pro, programmable timer with 1 channel
| Degree of protection (IP) | IP20 | |
| Assembly | DIN rail | |
| Version | time switch | |
| Display | Yes | |
| Number of channels | 1 | |
| Function | daily/weekly program | |
| Rated voltage | 230 V |
| Country of origin | DE |
| Customs tariff number | 91070000 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
