2NT1-2 | Honeywell
Toggle switch, metal, 2 pole, latching, On-Off, 15 A/125 VAC, gold-plated, 2NT1-2
Unit Price (€ / pc.)
50.1228 € *
Available in 5 Days: 1,404 pcs. - if ordered today

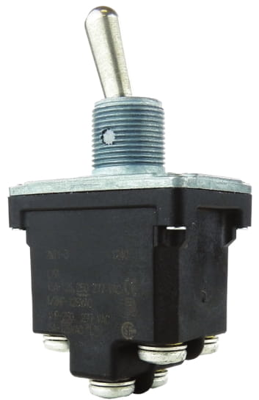

Toggle switch, 2NT1-2, HONEYWELL
The 2NT1-2 toggle switch meets the need for a rugged, cost-effective toggle switch. Quality construction features include a seal between the toggle lever and bushing, and between the cover and case. This switch is suitable for applications in many demanding outdoor environments, where the panels are subjected to vibration from equipment, temperature extremes, dust, splashing water, and/or hose directed water.
Features
- Excellent tactile feedback
- Locking levers reduce unintended actuation
Applications
- Industrial equipment
- Platform lifts for trucks
- Railroad locomotives and maintenance equpment
- Construction equipment
- Agricultural machinery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| illuminated | No | |
| Protection class | IP68 | |
| Latching switching function | latching | |
| Shift position | On-Off | |
| Breaking capacity | 15 A/125 VAC | |
| Design | vertical | |
| Actuator colour | metal | |
| Connection | screw connection | |
| Pin number | 2 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
