1NT1-1 | Honeywell
Toggle switch, metal, 1 pole, latching, On-Off-On, 15 A/125 VAC, gold-plated, 1NT1-1
Unit Price (€ / pc.)
24.4783 € *
Available in 5 Days: 1,486 pcs. - if ordered today

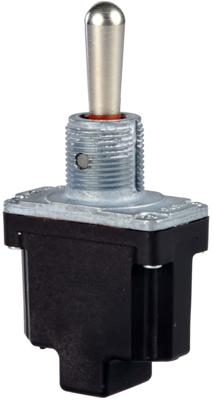

Toggle switch, 1NT1-1, HONEYWELL
The 1NT1-1 toggle switch meets the need for a rugged, cost-effective toggle switch. Quality construction features include a seal between the toggle lever and bushing, and between the cover and case. This switch is suitable for applications in many demanding outdoor environments, where the panels are subjected to vibration from equipment, temperature extremes, dust, splashing water, and/or hose directed water.
Features
- Excellent tactile feedback
- Locking levers reduce unintended actuation
Applications
- Industrial equipment
- Platform lifts for trucks
- Railroad locomotives and maintenance equpment
- Construction equipment
- Agricultural machinery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Protection class | IP68 | |
| Latching switching function | latching | |
| Connection | screw connection | |
| Design | vertical | |
| illuminated | No | |
| Shift position | On-Off-On | |
| contact surface | gold-plated | |
| Actuator colour | metal | |
| Breaking capacity | 15 A/125 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
