GLLC01A2B | Honeywell
Switch, 1 pole, 1 Form C (NO/NC), roller lever, screw connection, IP66, GLLC01A2B
Unit Price (€ / pc.)
57.2747 € *
Standard delivery time from the manufacturer is: 15 Weeks

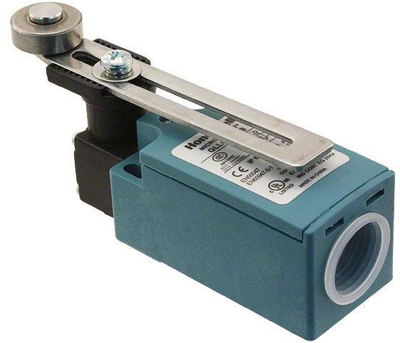

Limit switch, GLLC01A2B, Honeywell
The GLLC01A2B miniature industrial limit switch is designed with global certifications for worldwide use. With an integral contact block, the design also provides a double-insulated thermoplastic housing and conforms to the EN50047 mounting pattern with IP and NEMA environmental sealing.
Features
- Designed to EN50047 standard
- Double insulated plastic housing
- Certified for global applications; CE, cULus, CSA, CCC
- Hinge cover with single fastener for easy wiring access
- IP66 environmental sealing for indoor or outdoor applications
- ROHS compliant
Applications
- Aerial platforms/Lifts
- Elevators/Escalators
- Industrial Doors/Gates
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form C (NO/NC) | |
| Pin number | 1 pole | |
| Actuator | roller lever | |
| Connection | screw connection | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
