C1812X104K102T | HolyStone
Ceramic capacitor, 100 nF, 1000 V (DC), ±10 %, SMD 1812, X7R, C1812X104K102T
Unit Price (€ / pc.)
0.7735 € *
Available: 670 pcs.
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.5117 €
100 pcs.
0.3570 €
500 pcs.
0.2642 €
1000 pcs.
0.2404 €
*incl. VAT plus shipping costs
Subject to prior sale

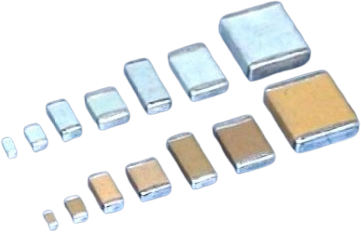

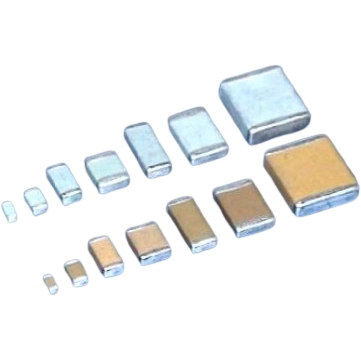

Multilayer ceramic chip capacitor, C1812X104K102T, HolyStone
The C1812X104K102T multilayer ceramic chip capacitor is well suited for commercial and industrial applications. The special internal electrode design offers the highest voltage rating.
Features
- Surface mount suitable for wave and reflow soldering
- High reliability
- RoHS compliant
Applications
- LAN/WLAN interface, Back-Lighting Inverter, DC-DC Converters, Ballast, Modems and Power Supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| Dielectric material | X7R | |
| Rated voltage (DC) | 1000 V | |
| Length | 4.6 mm | |
| Design | SMD 1812 | |
| min. operating temperature | -55 °C | |
| Capacity | 100 nF |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 700 pieces |
| Customs tariff number | 85322400 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
