C1210X106K050T | HolyStone
Ceramic capacitor, 10 µF, 50 V (DC), ±10 %, SMD 1210 (3225), X7R, C1210X106K050T
Unit Price (€ / pc.)
0.9401 € *
Available: 949 pcs.
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.6307 €
100 pcs.
0.4284 €
500 pcs.
0.3213 €
1000 pcs.
0.2916 €
*incl. VAT plus shipping costs
Subject to prior sale

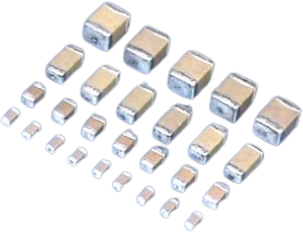

Multilayer ceramic chip capacitor, C1210X106K050T, HolyStone
The C1210X106K050T multilayer ceramic chip capacitor is ideal for smoothing and decoupling circuits. It is suitable for DC-DC converter, personal computer and peripherals, telecommunication and general electronic equipment.
Features
- Surface mount suitable for wave and reflow soldering
- High reliability
- Small size and high capacitance value
- Excellent high frequency characteristics
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Dielectric material | X7R | |
| Rated voltage (DC) | 50 V | |
| Length | 3.2 mm | |
| Capacity | 10 µF | |
| Design | SMD 1210 (3225) | |
| min. operating temperature | -55 °C | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85322400 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
