ELECOLIT 3661 50 G DOSE | Hoenle Adhesives (ehemals Panacol)

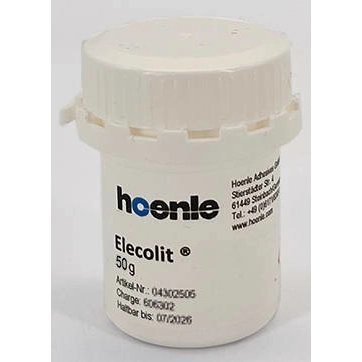

Elecolit adhesive 50 g bottle, Hoenle Adhesives (ehemals Panacol) ELECOLIT 3661 50 G DOSE
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
375.7068 € *
Standard delivery time from the manufacturer is: 6 Weeks
Adhesive, ELECOLIT 3661 50 G, PANACOL
The ELECOLIT 3661 50 G is a one-component, silver-containing, conductive adhesive and does not contain any solvents with open pot life being 14 days. The slightly flexible polymer structure allows the use in applications that are exposed to vibrations or rapid temperature fluctuations. The high viscosity allows the material to be applied via dispenser, die or pin transfer without stringing. It cures quickly at elevated temperatures. For good conductivity and resistance we recommend a curing time of approx. 10 min at 150 ° C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | elecolit adhesive | |
| Contents | 50 g | |
| Container | bottle | |
| Viscosity | 20 to 40 Pa∙s | |
| Suitable for | plastics, ceramic, wood | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 35061000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
Signal word
| Property | Value |
|---|---|
| Information on dangerous goods | Supplemental Hazard |
