SML 100/1 SW | Hirschmann Test & Measurement
Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, black, silicone, 1.0 mm², CAT O, SML 100/1 SW
Unit Price (€ / pc.)
7.4137 € *
Available: 13 pcs.
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
7.41 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4137 €
25 pcs.
6.7949 €
50 pcs.
6.3784 €
100 pcs.
5.9738 €
250 pcs.
5.5573 €
*incl. VAT plus shipping costs
Subject to prior sale

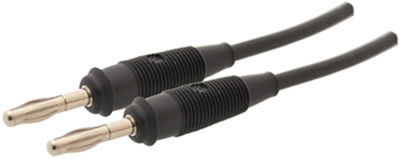

Measuring lead, SML 100/1 SW Hirschmann Test & Measurement
Silicone test lead, 4mm connector on both sides with cage spring. Contact spring made of nickel-plated copper beryllium. Highly flexible, double insulated stranded wire, soldering iron resistant, grip sleeve and wire tread resistant. Incorporated color indicator to detect damage to insulation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Cable length | 1 m | |
| Cable cross-section | 1.0 mm² | |
| Colour | black | |
| Material | silicone | |
| contact surface | nickel-plated | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 16 A | |
| Touch safe | No | |
| Stackable | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
| RoHS conform | Yes |
| SVHC free | No |
