MVLF WS 2/10 ROT | Hirschmann Test & Measurement

Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 100 mm, red, PVC, 0.5 mm², CAT O, MVLF WS 2/10 ROT

Order No.: 86F5333
EAN: 4099891076771
MPN:
MVLF WS 2/10 ROT
938 110-101
Series: MVLF WS

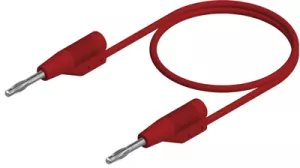

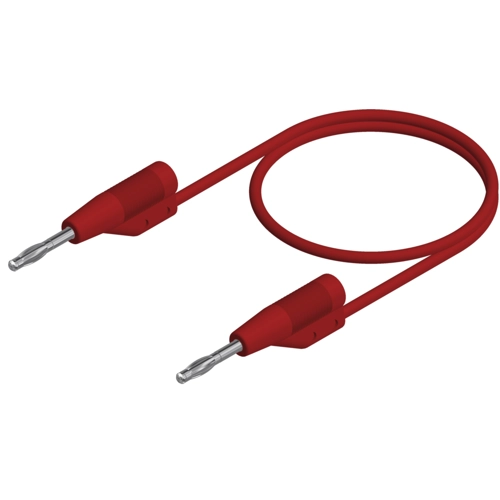

MVLF WS 2/10 ROT Hirschmann Test & Measurement Test Leads Image 1
MVLF WS 2/10 ROT Hirschmann Test & Measurement Test Leads Image 2
Image may differ
Unit Price (€ / pc.)
6.4141 € *
Available in 6 Days: 290 pcs. - if ordered today
Total Price:
6.41 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4141 €
10 pcs.
5.9143 €
50 pcs.
5.5692 €
100 pcs.
5.2360 €
250 pcs.
4.9028 €
*incl. VAT plus shipping costs
Subject to prior sale

Measuring lead, MVLF WS 2/10 ROT, Hirschmann Test & Measurement

Overmolded test lead with 2 mm plug spring-loaded at both ends, stackable. Highly flexible, tread-resistant stranded cable.

Technical specifications
Connection (1) 2 mm plug, spring-loaded, straight
Connection (2) 2 mm plug, spring-loaded, straight
Cable length 100 mm
Cable cross-section 0.5 mm²
Colour red
Material PVC
contact surface nickel-plated
Rated category CAT O
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Touch safe No
Stackable Yes
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
