PRUEF 2700 RT | Hirschmann Test & Measurement

Test probe, socket 4 mm, rigid, 1 kV, red, PRUEF 2700 RT

Order No.: 35F1194
EAN: 4099891479633
MPN:
PRUEF 2700 RT
972 319-101
Series: PRUEF 2700

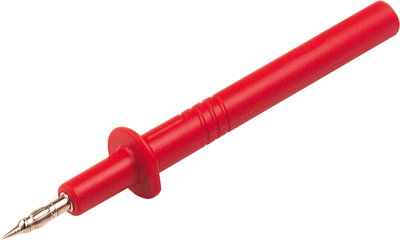

PRUEF 2700 RT Hirschmann Test & Measurement Test Leads and Test Probes Image 1

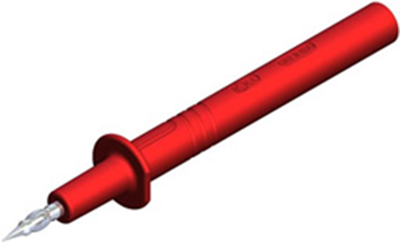

PRUEF 2700 RT Hirschmann Test & Measurement Test Leads and Test Probes Image 2

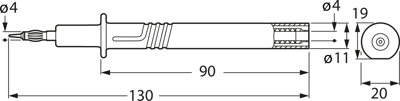

PRUEF 2700 RT Hirschmann Test & Measurement Test Leads and Test Probes Image 3
Image may differ
Unit Price (€ / pc.)
5.7358 € *
Available: 26 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
5.74 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7358 €
20 pcs.
5.0456 €
100 pcs.
4.7005 €
500 pcs.
4.5339 €
1000 pcs.
4.2602 €
*incl. VAT plus shipping costs
**Subject to prior sale

Safety test probes, type Hirschmann T & M PRUEF 2700.

Compliant with IEC 61010, with dual function. Tip for penetrating insulation and oxide layers and 4.0 mm pin for insertion in sockets; Contact material: nickel-plated brass. Contact spring: copper beryllium. Connection: 4.0 mm jack made of brass. Rated voltage: 1000 V AC/DC, CAT III. Contact resistance: 2.0 mohm. Operating temperatures: –25 to +80 °C.


Technical attributes (type, color): PRUEF 2700, red

Technical specifications
Connection Buchse 4 mm, starr
Rated voltage 1 kV
Colour rot
Material Insulation PP
Contact material Messing, vernickelt
Logistics
Country of origin DE
Customs tariff number 85369095
Original Packaging Karton mit 20 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
