973531101 | Hirschmann Test & Measurement
Miniature test probe, socket 2 mm, spring loaded, 30 VAC/60 VDC, CAT O, red, 973531101
Unit Price (€ / pc.)
2.9512 € *
Available: 29 pcs.
Total Price:
2.95 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9512 €
10 pcs.
2.8084 €
50 pcs.
2.6537 €
100 pcs.
2.3562 €
500 pcs.
2.2134 €
*incl. VAT plus shipping costs
Subject to prior sale

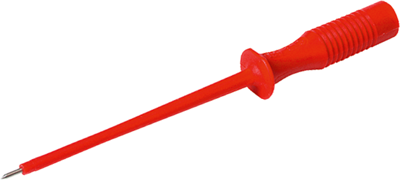

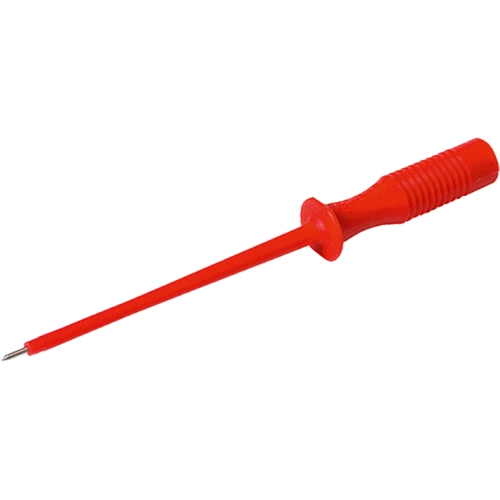

Miniature test probes, type Hirschmann T & M MPS 1.
For sampling the most intricate measuring points. The stainless steel tip easily penetrates insulation and oxide layers; Contact material: nickel-plated stainless steel. Connection: jack, diameter 2.0 mm, gold-plated, with contact spring. Rated voltage: 60 VDC. Contact resistance: 100 mohm. Operating temperatures: –25 to +60 °C.
Technical attributes (type, color): MPS 1, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | miniature test probe | |
| Connection | socket 2 mm, spring loaded | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated category | CAT O | |
| Colour | red | |
| Material Insulation | PE | |
| Contact material | brass, nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
