972319100 | Hirschmann Test & Measurement

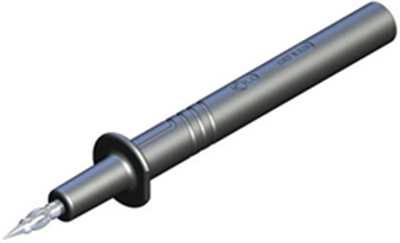

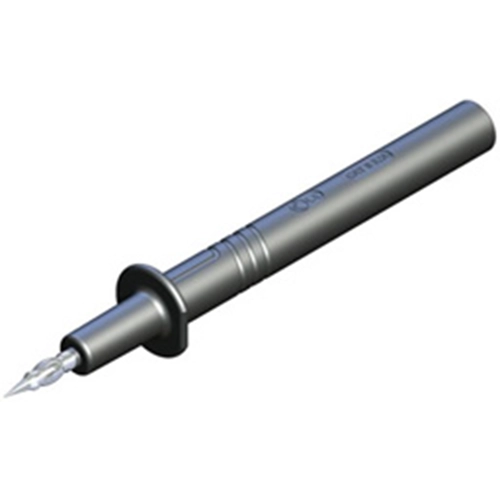

Test probe, socket 4 mm, rigid, 1 kV, black, 972319100
Unit Price (€ / pc.)
5.7358 € *
Available: 19 pcs.
Total Price:
5.74 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7358 €
20 pcs.
5.0456 €
100 pcs.
4.7005 €
500 pcs.
4.5339 €
1000 pcs.
4.2602 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety test probes, type Hirschmann T & M PRUEF 2700.
Compliant with IEC 61010, with dual function. Tip for penetrating insulation and oxide layers and 4.0 mm pin for insertion in sockets; Contact material: nickel-plated brass. Contact spring: copper beryllium. Connection: 4.0 mm jack made of brass. Rated voltage: 1000 V AC/DC, CAT III. Contact resistance: 2.0 mohm. Operating temperatures: –25 to +80 °C.
Technical attributes (type, color): PRUEF 2700, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 4 mm, rigid | |
| Rated voltage | 1 kV | |
| Colour | black | |
| Material Insulation | PP | |
| Contact material | brass, nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 20 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
