KB 2 SW | Hirschmann Test & Measurement

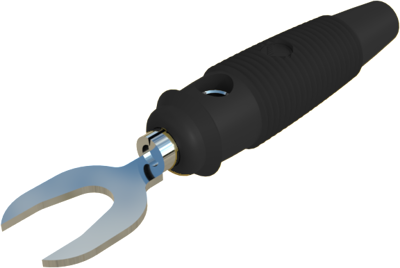

Laboratory cable lug with cross hole, cable lug 4-7 mm to screw connection, black, CAT O, KB 2 SW

Order No.: 30F100
EAN: 4099889684254
MPN:
KB 2 SW
930 584-100
Series: KB 2
KB 2 SW Hirschmann Test & Measurement T&M Adapters
Image may differ
Unit Price (€ / pc.)
2.0825 € *
Available: 91 pcs.
Available in 6 Days: 900 pcs. - if ordered today
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0825 €
25 pcs.
1.7731 €
50 pcs.
1.6184 €
100 pcs.
1.5351 €
500 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale

Laboratory cable lug, KB 2 SW, Hirschmann Test & Measurement

Cable lug with shatter-proof, flexible insulated sleeve with 4 mm diameter transverse hole. Screw connection up to a maximum of 1.5 mm². For connection to bolts from 4 mm to 7 mm diameter. Nickel-plated brass contact material.

Technical specifications
Colour black
Site (1) cable lug 4-7 mm
contact surface nickel-plated
Site (2) screw connection
Version laboratory cable lug with cross hole
Rated Voltage 30 VAC/60 VDC
Rated current 30 A
Rated category CAT O
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
