VSB 20 GN | Hirschmann Test & Measurement

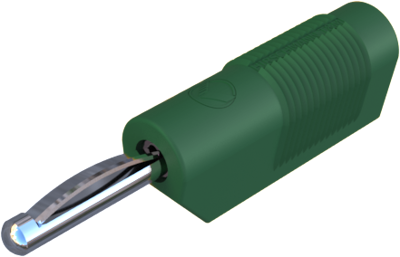

4 mm plug, screw connection, 2.5 mm², CAT O, green, VSB 20 GN
Unit Price (€ / pc.)
2.0230 € *
Available: 50 pcs.
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0230 €
50 pcs.
1.7017 €
100 pcs.
1.6422 €
500 pcs.
1.5708 €
1000 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale
Fully mating connectors, 4.0 mm, type Hirschmann T & M VSB 20.
With longitudinal or transverse cable entry. For tower stacking; Connection type: screw terminals for up to 2.5 mm². Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 30 A. Contact resistance: 3.0 mohm. Operating temperatures: –25 to +70 °C.
Technical attributes (type, color): VSB 20, green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Stackable | Yes | |
| Version | plug | |
| diameter | 4 mm | |
| Cable cross-section | 2.5 mm² | |
| contact surface | nickel-plated | |
| Touch safe | No | |
| Length | 55 mm | |
| Rated current | 30 A | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Colour | green | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
