SEP 2630 S1,9 SW | Hirschmann Test & Measurement
4 mm socket, solder connection, mounting Ø 12.2 mm, CAT III, black, SEP 2630 S1,9 SW
Unit Price (€ / pc.)
1.4756 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
10 pcs.
1.3566 €
50 pcs.
1.2495 €
100 pcs.
1.1781 €
500 pcs.
1.1067 €
*incl. VAT plus shipping costs
Subject to prior sale
Laboratory connector, SEP 2630 S1,9 SW, HIRSCHMANN

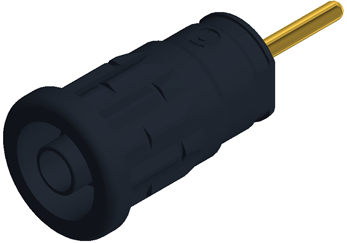

The SEP 2630 S1,9 SW is a safety press-in socket with 4 mm diameter and has protected contacts with 1.9 mm soldering spike. It is used for installation into switchpanels with wall thicknesses between 1 mm and 10 mm and the installation hole is 12.2 +/-0.1 mm in diameter.
Technical specifications
| Colour | black | |
| Installation diameter | 12.2 mm | |
| contact surface | gold-plated | |
| diameter | 4 mm | |
| Length | 36 mm | |
| Touch safe | Yes | |
| Version | press-in socket | |
| Connection | solder connection | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
