SEP 2620 F6,3 RT | Hirschmann Test & Measurement

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, red, SEP 2620 F6,3 RT

Order No.: 25F2102
EAN: 4099889671995
MPN:
SEP 2620 F6,3 RT
972 362-101
Series: SEP 2620 F6,3

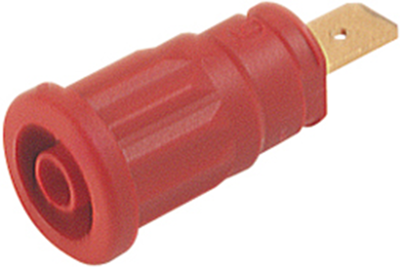

SEP 2620 F6,3 RT Hirschmann Test & Measurement Laboratory Connectors Image 1

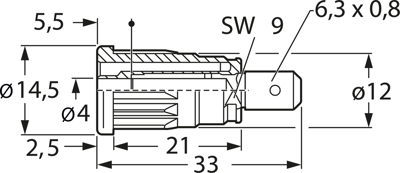

SEP 2620 F6,3 RT Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Available: 29 pcs.
Available in 6 Days: 1,000 pcs. - if ordered today
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2372 €
10 pcs.
1.9040 €
50 pcs.
1.7493 €
100 pcs.
1.6660 €
500 pcs.
1.5232 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel jacks, 4.0 mm, type Hirschmann T & M SEP.

Compliant with IEC 61010. For 4.0 mm safety laboratory plugs, touch-proof. For installation in switchboard panels with thickness from 1.0 to 10 mm. With 6.3 x 0.8 mm tab terminals; Contact material: gold-plated brass. Rated voltage: 1000 VUC, CAT II. Rated current: 32 A. Contact resistance: 5.0 mohm. Operating temperatures: - 40 to +80 °C, color: red.

With 6.3 x 0.8 mm tab terminals, type SEP 2620 F6,3.

Technical specifications
Colour red
Installation diameter 12.2 mm
contact surface gold-plated
diameter 4 mm
Length 33 mm
Touch safe Yes
Version press-in socket
Connection flat plug connection
Rated Voltage 1000 V
Rated current 32 A
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
