SEP 2610 F4,8 GN | Hirschmann Test & Measurement

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, green, SEP 2610 F4,8 GN

Order No.: 25F2088
EAN: 4099889671964
MPN:
SEP 2610 F4,8 GN
972 361-104
Series: SEP 2610 F4,8

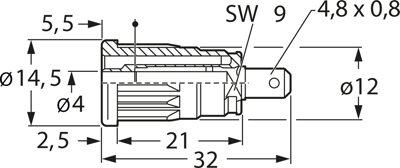

SEP 2610 F4,8 GN Hirschmann Test & Measurement Laboratory Connectors Image 1

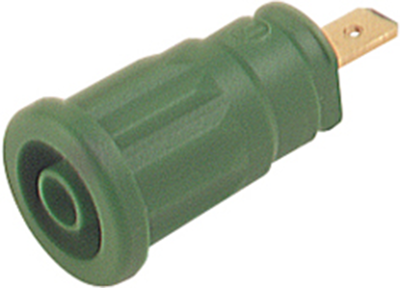

SEP 2610 F4,8 GN Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Available in 6 Days: 600 pcs. - if ordered today
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5470 €
10 pcs.
1.3209 €
50 pcs.
1.2138 €
100 pcs.
1.1424 €
500 pcs.
1.0710 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel jacks, 4.0 mm, type Hirschmann T & M SEP.

Compliant with IEC 61010. For 4.0 mm safety laboratory plugs, touch-proof. For installation in switchboard panels with thickness from 1.0 to 10 mm. With 4.8 x 0.8 mm tab terminals; Contact material: gold-plated brass. Rated voltage: 1000 VUC, CAT II. Rated current: 24 A. Contact resistance: 5.0 mohm. Operating temperatures: - 40 to +80 °C, color: green.

With 4.8 x 0.8 mm tab terminals, type SEP 2610 F4,8.

Technical specifications
Rated current 24 A
Rated category CAT III
Installation diameter 12.2 mm
Rated Voltage 1000 V
Connection flat plug connection
Length 32 mm
contact surface gold-plated
Colour green
Version press-in socket
Touch safe Yes
diameter 4 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
