SEB 2620 F6,3 WS | Hirschmann Test & Measurement

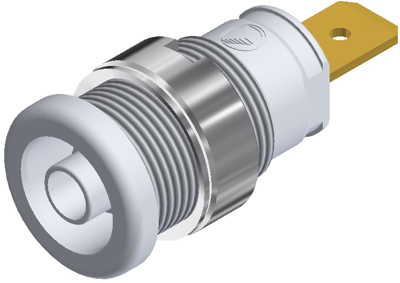

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, white, SEB 2620 F6,3 WS

Order No.: 25F2061
EAN: 4099889671841
MPN:
SEB 2620 F6,3 WS
972 356-107
Series: SEB 2620 F6,3
SEB 2620 F6,3 WS Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
2.8560 € *
Available: 55 pcs.
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.5109 €
100 pcs.
2.2134 €
500 pcs.
2.1301 €
1000 pcs.
1.9635 €
*incl. VAT plus shipping costs
Subject to prior sale

Laboratory connector, SEB 2620 F6,3 WS, HIRSCHMANN

The SEB 2620 F6,3 WS is a safety built-in socket with 4 mm diameter and has protected contacts, with 6.3 x 0.8 tab connector. It is used for installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm in diameter and the tightening torque is 50 Ncm.

Technical specifications
Colour white
Installation diameter 12.2 mm
contact surface gold-plated
diameter 4 mm
Length 33 mm
Touch safe Yes
Version socket
Connection flat plug connection
Rated Voltage 1000 V
Rated current 32 A
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 50 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
