SEB 2620 F6,3 RT | Hirschmann Test & Measurement
4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT III, red, SEB 2620 F6,3 RT
Unit Price (€ / pc.)
2.7727 € *
Available: 247 pcs.
Available in 6 Days: 600 pcs. - if ordered today
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
10 pcs.
2.4395 €
100 pcs.
2.1539 €
500 pcs.
2.0706 €
1000 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale

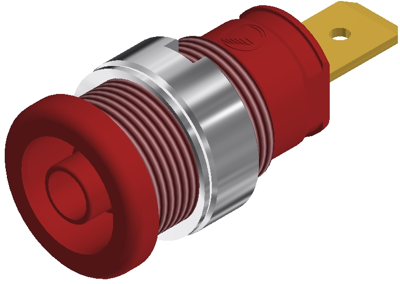

Laboratory connector, SEB 2620 F6,3 RT, HIRSCHMANN
The SEB 2620 F6,3 RT is a safety built-in socket with 4 mm diameter and has protected contacts, with 6.3 x 0.8 tab connector. It is used for installation into switchpanels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm in diameter and the tightening torque is 50 Ncm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 12.2 mm | |
| Colour | red | |
| Rated category | CAT III | |
| Connection | flat plug connection | |
| Rated Voltage | 1000 V | |
| diameter | 4 mm | |
| Touch safe | Yes | |
| Version | socket | |
| contact surface | gold-plated | |
| Length | 33 mm | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
