SEB 2600 G M4 GN | Hirschmann Test & Measurement

4 mm socket, screw connection, mounting Ø 12.2 mm, CAT III, green, SEB 2600 G M4 GN

Order No.: 25F2036
EAN: 4099889671650
MPN:
SEB 2600 G M4 GN
972 354-104
Series: SEB 2600 G M4

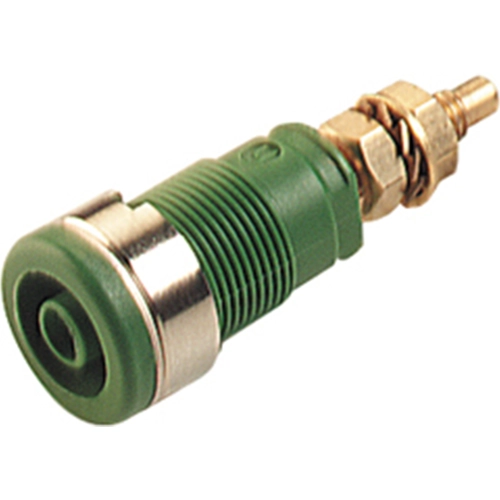

SEB 2600 G M4 GN Hirschmann Test & Measurement Laboratory Connectors Image 1
SEB 2600 G M4 GN Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.8913 € *
Available in 6 Days: 600 pcs. - if ordered today
Total Price:
3.89 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8913 €
10 pcs.
3.4391 €
100 pcs.
3.0107 €
500 pcs.
2.8798 €
1000 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel jacks, 4.0 mm, type Hirschmann T & M SEB.

Gemäß IEC 61010, für 4,0 mm Sicherheitslaborstecker, berührungssicher, zum Einbau in Schalttafeln bis 6,0 mm Wandstärke, mit Schraubanschluss; Kontaktart: ungefederte Buchse, Kontaktmaterial: Messing, vergoldet, Gehäusematerial: PA, UL 94 V-2. Bemessungsspannung: 1000 VUC, CAT II, Bemessungsstrom: 32 A, Durchgangswiderstand: 5,0 mOhm, Temperaturbereich: - 40 bis +80 °C.

With screwed connection, type SEB 2600 G M4.

With M 4 threaded bolt and soldering hole; Rated current: 32 A.

Technical attributes (type, color): SEB 2600 G M4, green

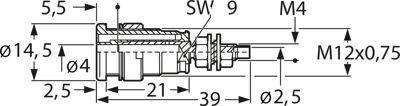

Technical specifications
Version socket
diameter 4 mm
Length 39 mm
Colour green
Rated Voltage 1000 V
Touch safe Yes
Rated current 32 A
Connection screw connection
Rated category CAT III
Installation diameter 12.2 mm
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Original Packaging Carton with 50 pieces
Compliance
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
