SAB 2630 S1,9 AU BL | Hirschmann Test & Measurement

4 mm socket, solder connection, mounting Ø 11 mm, CAT II, blue, SAB 2630 S1,9 AU BL

Order No.: 22F297
EAN: 4099889669831
MPN:
SAB 2630 S1,9 AU BL
972 360-702
Series: SAB 2630 S 1,9

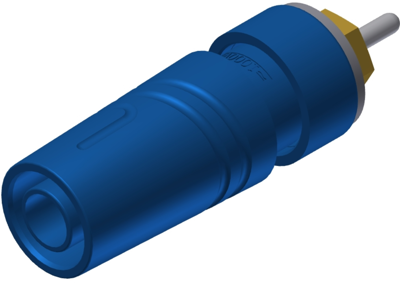

SAB 2630 S1,9 AU BL Hirschmann Test & Measurement Laboratory Connectors Image 1

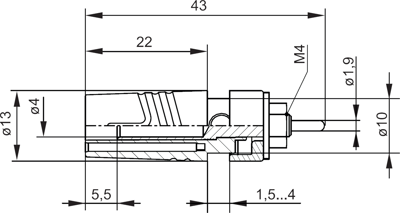

SAB 2630 S1,9 AU BL Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.9750 € *
Available in 6 Days: 150 pcs. - if ordered today
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
2.7608 €
50 pcs.
2.5347 €
100 pcs.
2.3919 €
500 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale

Safety surface-mounted socket, SAB 2630 S1,9 AU BL, HIRSCHMANN

Safety surface-mounted socket, 4 mm diameter, contact-protected, gold-plated brass with solder pin Ø 1,9mm. For installation into switch-panels and equipment-chassis of 1 - 4 mm thickness. Connects with safety test leads.

Technical specifications
Filter Property Value
Colour blue
Version socket
Length 43 mm
Connection solder connection
Installation diameter 11 mm
Rated Voltage 1000 V
diameter 4 mm
Touch safe Yes
Rated current 24 A
Rated category CAT II
contact surface gold-plated
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
