SAB 2600 G M4 AU RT | Hirschmann Test & Measurement

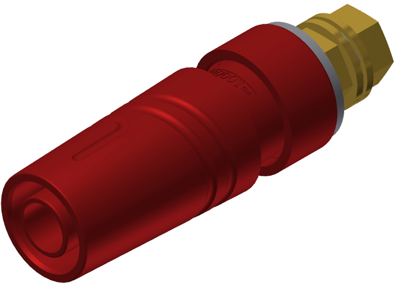

4 mm socket, screw connection, mounting Ø 11 mm, CAT II, red, SAB 2600 G M4 AU RT

Order No.: 22F302
EAN: 4099889669862
MPN:
SAB 2600 G M4 AU RT
972 357-701
Series: SAB 2600 G M4
SAB 2600 G M4 AU RT Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
4.4149 € *
Available: 46 pcs.
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
4.41 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4149 €
10 pcs.
3.8675 €
100 pcs.
3.4034 €
500 pcs.
3.2725 €
1000 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale

Laboratory connector, SAB 2600 G M4 AU RT, HIRSCHMANN

The SAB 2600 G M4 AU RT is a safety surface-mounted socket with 4 mm diameter and has protected contacts. It used for installation into switch-panels and equipment-chassis of 1-4 mm thickness.

Technical specifications
Colour red
Installation diameter 11 mm
contact surface gold-plated
diameter 4 mm
Length 42 mm
Touch safe Yes
Version socket
Connection screw connection
Rated Voltage 1000 V
Rated current 32 A
Rated category CAT II
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
