PB 4 RT | Hirschmann Test & Measurement
4 mm socket, solder connection, CAT O, red, PB 4 RT
Unit Price (€ / pc.)
1.9873 € *
Available: 18 pcs.
Next delivery: 400 pcs. on 2025-07-01
Available in 6 Days: 450 pcs. - if ordered today
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
50 pcs.
1.6779 €
100 pcs.
1.5470 €
250 pcs.
1.4756 €
1000 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

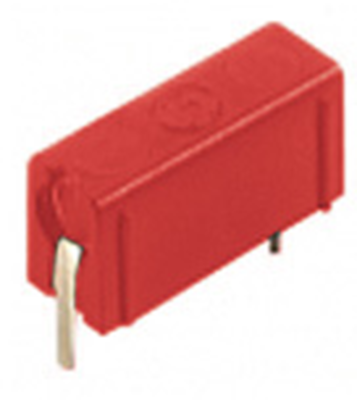

Test jacks, 4.0 mm, type Hirschmann T & M PB 4.
For 4.0 mm laboratory plugs. For soldering onto PCBs. Made of tinned brass; Rated voltage: 60 VDC. Rated current: 16 A. For screw mounting on the PCB by means of cylindrical head screw BZ 2.2 DIN 7971. Operating temperatures: –25 to +85 °C.
Type: PB 4, red

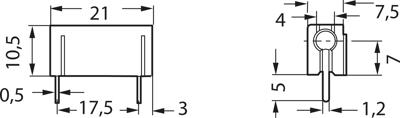

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket | |
| Length | 21 mm | |
| Rated category | CAT O | |
| diameter | 4 mm | |
| contact surface | tin-plated | |
| Colour | red | |
| Rated current | 16 A | |
| Connection | solder connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Touch safe | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
