MKU 1 GN | Hirschmann Test & Measurement

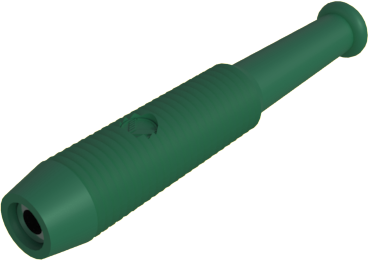

2 mm jack, solder connection, 0.5 mm², green, MKU 1 GN

Order No.: 20F217
EAN: 4099889667851
MPN:
MKU 1 GN
930 320-104
Series: MKU 1
MKU 1 GN Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available: 125 pcs.
Available in 6 Days: 400 pcs. - if ordered today
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
10 pcs.
0.9758 €
100 pcs.
0.9163 €
500 pcs.
0.7735 €
1000 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale

Jacks, 2.0 mm, type Hirschmann T & M MKU 1.

For 2.0 mm plugs. Solder terminals, flexible and step-on proof insulation sleeve. Contact spring made of tinned copper beryllium; Rated voltage: 60 VDC. Rated current: 6.0 A. Operating temperatures: –20 to +60 °C.

Type: MKU 1, green

Technical specifications
Colour green
contact surface tin-plated
diameter 2 mm
Length 39 mm
Cable cross-section 0.5 mm²
Touch safe No
Version jack
Connection solder connection
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
