MBI 1 GN | Hirschmann Test & Measurement

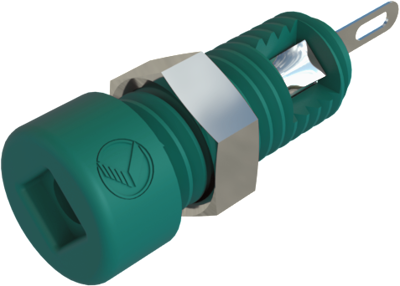

2 mm socket, solder connection, mounting Ø 5 mm, CAT O, green, MBI 1 GN

Order No.: 25F324
EAN: 4099889672671
MPN:
MBI 1 GN
930 308-104
Series: MBI 1
MBI 1 GN Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
0.9401 € *
Available: 75 pcs.
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
50 pcs.
0.8449 €
100 pcs.
0.7854 €
500 pcs.
0.7140 €
1000 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel jacks, 2.0 mm, type Hirschmann T & M MBI 1.

For 2.0 mm plugs, insulated, solder connection; Insulation: PA. Contact spring: copper beryllium, tinned. Rated voltage: 60 VDC. Rated current: 6.0 A. Operating temperatures: –20 to +60 °C.

Ausführung verzinnt.

Type: MBI 1, green

Technical specifications
Colour green
Installation diameter 5 mm
contact surface tin-plated
diameter 2 mm
Length 21 mm
Touch safe No
Version socket
Connection solder connection
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Rated category CAT O
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
