LAS S G BR | Hirschmann Test & Measurement

4 mm plug, screw connection, 0.5-1.5 mm², CAT III, brown, LAS S G BR

Order No.: 12F226
EAN: 4099889664256
MPN:
LAS S G BR
934 097-105
Series: LAS S G
LAS S G BR Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
2.9155 € *
Available: 48 pcs.
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9155 €
10 pcs.
2.5704 €
50 pcs.
2.2610 €
100 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale

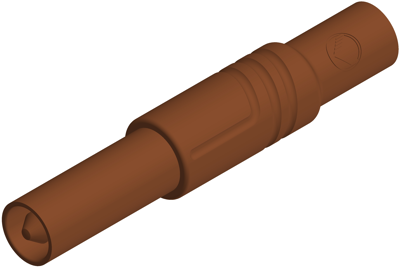

Laboratory connector, LAS S G BR, HIRSCHMANN

The LAS S G BR is a safety straight connector with screw connection for leads from 0.5 mm² to 1.5 mm² and the outer diameter of the lead is max. 4.2 mm.

Technical specifications
Colour brown
contact surface nickel-plated
max. Cable diameter 4.2 mm
diameter 4 mm
Length 54.3 mm
Cable cross-section 0.5-1.5 mm²
Touch safe Yes
Version plug
Connection screw connection
Rated Voltage 1000 V
Rated current 24 A
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
