LAS 30 GN AU | Hirschmann Test & Measurement

4 mm plug, solder connection, 1.5 mm², CAT O, green, LAS 30 GN AU

Order No.: 10F798
EAN: 4099889663921
MPN:
LAS 30 GN AU
972 518-704
Series: LAS 30 Au

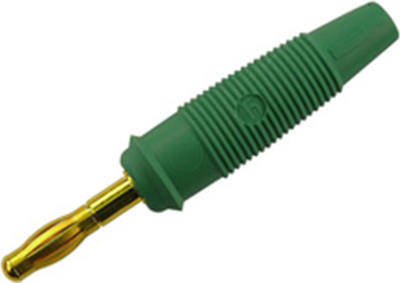

LAS 30 GN AU Hirschmann Test & Measurement Laboratory Connectors Image 1
LAS 30 GN AU Hirschmann Test & Measurement Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.3201 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
2.9036 €
50 pcs.
2.5585 €
100 pcs.
2.4514 €
500 pcs.
2.2729 €
*incl. VAT plus shipping costs
Subject to prior sale

Lamellar plugs 4.0 mm, type Hirschmann T & M LAS 30.

With cage clamp spring, step-on proof; Connection: solder terminals up to 1.5 mm². Cable outer diameter: max. 4.2 mm. Contact material: brass, gold-plated. Contact spring: copper beryllium, gold- or nickel-plated. Rated voltage: 60 VDC. Rated current: 32 A. Operating temperatures: - 25 to +70 °C.

Gold-plated.

Type: LAS 30 Au, green

Technical specifications
Touch safe No
contact surface gold-plated
Rated Voltage 30 VAC/60 VDC
Length 60 mm
Colour green
Rated current 32 A
Connection solder connection
diameter 4 mm
Rated category CAT O
max. Cable diameter 4.2 mm
Cable cross-section 1.5 mm²
Version plug
Logistics
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
