KUN S BL | Hirschmann Test & Measurement

4 mm jack, screw connection, 0.5-1.5 mm², CAT III, blue, KUN S BL

Order No.: 20F202
EAN: 4099889667660
MPN:
KUN S BL
934 096-102
Series: KUN S
KUN S BL Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
3.3677 € *
Available: 52 pcs.
Available in 6 Days: 400 pcs. - if ordered today
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
10 pcs.
2.9750 €
50 pcs.
2.5942 €
100 pcs.
2.4871 €
500 pcs.
2.3324 €
*incl. VAT plus shipping costs
Subject to prior sale

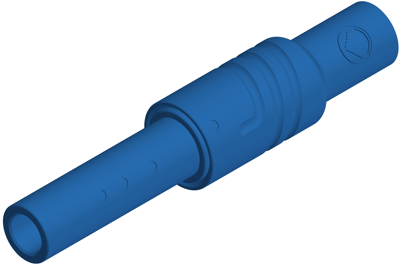

Laboratory connector, KUN S BL, HIRSCHMANN

The KUN S BL is a safety coupling with screw connection for leads from 0.5 mm² to 1.5 mm² and the outer diameter of the lead is max. 4,2 mm.

Technical specifications
Rated category CAT III
Connection screw connection
Cable cross-section 0.5-1.5 mm²
diameter 4 mm
Version jack
Colour blue
Rated Voltage 1000 V
Touch safe Yes
Length 48.2 mm
max. Cable diameter 4.2 mm
contact surface nickel-plated
Rated current 24 A
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
