KUN 30 BL | Hirschmann Test & Measurement

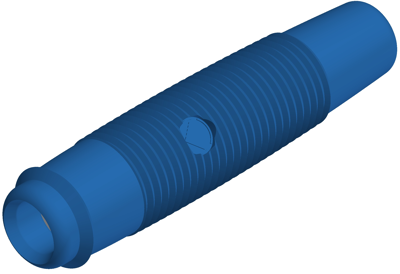

4 mm jack, solder connection, 2.5 mm², CAT O, blue, KUN 30 BL
Unit Price (€ / pc.)
1.1424 € *
Available: 1,147 pcs.
Available in 6 Days: 2,150 pcs. - if ordered today
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
50 pcs.
1.0115 €
250 pcs.
0.8687 €
1000 pcs.
0.7616 €
2500 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale
Jacks, 4.0 mm, type Hirschmann T & M KUN 30.
For 4.0 mm plug, with step-on-proof flexible insulating sleeve, solder terminals up to 2.5 mm²; Contact material: tinned brass. Rated voltage: 60 VDC. Rated current: 16 A. Operating temperatures: - 25 to +70 °C.
Tinned version.
Type: KUN 30, blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| diameter | 4 mm | |
| Cable cross-section | 2.5 mm² | |
| contact surface | nickel-plated | |
| Touch safe | No | |
| Length | 48 mm | |
| Rated current | 16 A | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Colour | blue | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
