KUN 10 RT | Hirschmann Test & Measurement

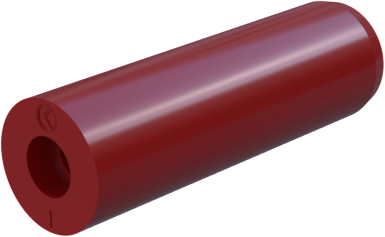

4 mm socket, screw connection, 1.5 mm², CAT O, red, KUN 10 RT

Order No.: 20F180
EAN: 4099889667639
MPN:
KUN 10 RT
930 189-101
Series: KUN 10
KUN 10 RT Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Available: 219 pcs.
Available in 6 Days: 3,400 pcs. - if ordered today
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
25 pcs.
1.1543 €
100 pcs.
1.0710 €
500 pcs.
1.0234 €
1000 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

Jacks, 4.0 mm, type Hirschmann T & M KUN 10.

For 4.0 mm plugs. With screw terminals, up to 1.5 mm²; Insulation: PS. Contact material: tinned brass. Rated voltage: 60 VDC. Rated current: 16 A. Operating temperatures: –25 to +70 °C.

Type: KUN 10, red

Technical specifications
Filter Property Value
Version socket
Length 36 mm
Rated category CAT O
diameter 4 mm
contact surface tin-plated
Colour red
Cable cross-section 1.5 mm²
Rated current 16 A
Connection screw connection
Rated Voltage 30 VAC/60 VDC
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 100 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
