4 mm socket, screw connection, mounting Ø 8 mm, CAT O, brown, BIL 30 BR AU
Unit Price (€ / pc.)
3.0940 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
50 pcs.
2.7132 €
200 pcs.
2.3919 €
1000 pcs.
2.2491 €
2000 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale
Laboratory connector, BIL 30 BR AU, Hirschmann Test & Measurement

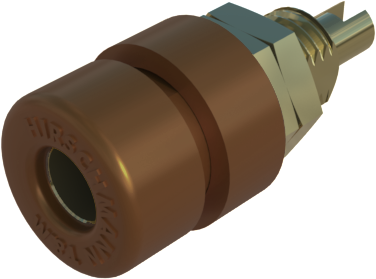

The BIL 30 BR AU is a socket with insulated head and ring for installation in equipment chassis and switchpanels up to 4 mm wall thickness. 4 mm diameter gold-plated zinc die-cast socket, with solder connection.
Technical specifications
| Colour | brown | |
| Installation diameter | 8 mm | |
| contact surface | gold-plated | |
| diameter | 4 mm | |
| Length | 23 mm | |
| Touch safe | No | |
| Version | socket | |
| Connection | screw connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
