BIL 30 BL AU | Hirschmann Test & Measurement

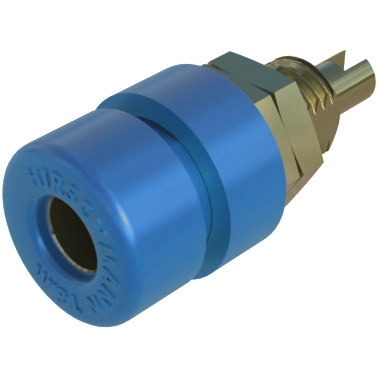

4 mm socket, screw connection, mounting Ø 8 mm, CAT O, blue, BIL 30 BL AU

Order No.: 25F155
EAN: 4099889671322
MPN:
BIL 30 BL AU
930 166-702
Series: BIL 30 Au
BIL 30 BL AU Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
3.0940 € *
Available: 177 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
50 pcs.
2.7132 €
200 pcs.
2.3919 €
1000 pcs.
2.2491 €
2000 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel jacks, 4.0 mm, type Hirschmann T & M BIL.

For 4.0 mm plugs, with solder terminals, insulating head and insulating ring for switchboard mounting;Contact type: female, not spring loaded. Contact material: gold plated zinc die-cast. Rated voltage: 30 VAC/60 VDC.Rated current: 32 A. Contact resistance: 3.5 mohm. Operating temperatures: - 25 to +85 °C.

For mounting in panels with thickness up to 4.0 mm.

Technical attributes:

type: BIL 30 Au, housing color: blue, contact finish: gold plated zinc die-cast

Technical specifications
Colour blue
Installation diameter 8 mm
contact surface gold-plated
diameter 4 mm
Length 23 mm
Touch safe No
Version socket
Connection screw connection
Rated Voltage 30 VAC/60 VDC
Rated current 32 A
Rated category CAT O
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 200 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
