975090702 | Hirschmann Test & Measurement
2 mm plug, solder connection, 0.5-1.0 mm², CAT III, blue, 975090702
Unit Price (€ / pc.)
2.7846 € *
Available: 22 pcs.
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.4514 €
100 pcs.
2.1539 €
500 pcs.
2.0825 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale

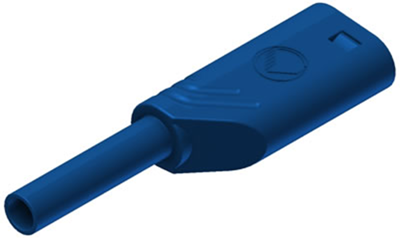

Safety stackable plug, MST S WS 30 AU BL, HIRSCHMANN
Contact-protected tower plug with solder connection for cables from 0.5 mm² to 1 mm². Cable outer diameter max. 2.9 mm. Spring-loaded 2 mm plug and unspring-loaded 2 mm socket, stackable.

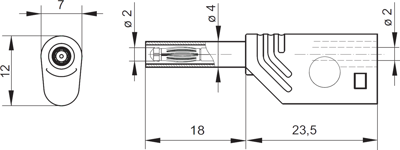

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 1000 V | |
| Rated category | CAT III | |
| max. Cable diameter | 2.9 mm | |
| Rated current | 10 A | |
| Colour | blue | |
| Cable cross-section | 0.5-1.0 mm² | |
| Version | plug | |
| Connection | solder connection | |
| diameter | 2 mm | |
| Touch safe | Yes | |
| contact surface | gold-plated | |
| Length | 41 mm | |
| Stackable | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
