975090701 | Hirschmann Test & Measurement
2 mm plug, solder connection, 0.5-1.0 mm², CAT III, red, 975090701
Unit Price (€ / pc.)
3.2011 € *
Available: 44 pcs.
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.8203 €
100 pcs.
2.4752 €
500 pcs.
2.3919 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale

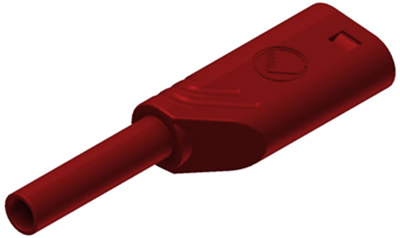

Safety stackable plug, MST S WS 30 AU RT, HIRSCHMANN
Contact-protected tower plug with solder connection for cables from 0.5 mm² to 1 mm². Cable outer diameter max. 2.9 mm. Spring-loaded 2 mm plug and unspring-loaded 2 mm socket, stackable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 2 mm | |
| Colour | red | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5-1.0 mm² | |
| max. Cable diameter | 2.9 mm | |
| Rated Voltage | 1000 V | |
| Rated current | 10 A | |
| Rated category | CAT III | |
| Touch safe | Yes | |
| Stackable | Yes | |
| Length | 41 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
