975090700 | Hirschmann Test & Measurement
2 mm plug, solder connection, 0.5-1.0 mm², CAT III, black, 975090700
Unit Price (€ / pc.)
2.7846 € *
Available: 160 pcs.
Available in 6 Days: 200 pcs. - if ordered today
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.4514 €
100 pcs.
2.1539 €
500 pcs.
2.0825 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale

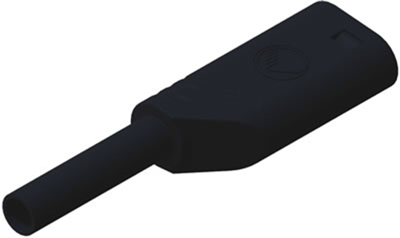

Laboratory connector, MST S WS 30 AU SW, HIRSCHMANN
The MST S WS 30 AU SW is a safety stackable plug with solder connection for leads from 0.5 mm² to 1.0 mm² and the outer diameter of the lead is max. 2.9 mm. It is equipped with spring loaded plug and unsprung 2 mm socket for onward connection capability. Simple assembly by Click-System.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2 mm | |
| max. Cable diameter | 2.9 mm | |
| contact surface | gold-plated | |
| Rated Voltage | 1000 V | |
| Touch safe | Yes | |
| Connection | solder connection | |
| Length | 41 mm | |
| Rated category | CAT III | |
| Stackable | Yes | |
| Rated current | 10 A | |
| Colour | black | |
| Version | plug | |
| Cable cross-section | 0.5-1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
