973509107 | Hirschmann Test & Measurement
2 mm plug, solder connection, CAT O, white, 973509107
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.5474 €
50 pcs.
0.5117 €
100 pcs.
0.4760 €
500 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale

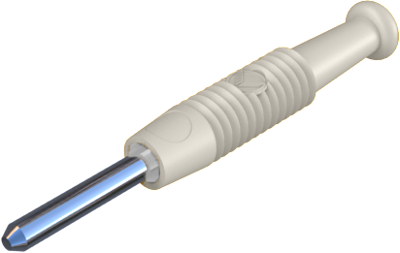

Plug, MST 3 WS, Hirschmann Test & Measurement
The MST 3 WS is a 2 mm diameter miniature connector, nickel-plated brass pin with solder connection. Flexible, shatter-proof insulated sleeve. For making up connecting leads with a maximum external diameter of 1.9 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2 mm | |
| Length | 37 mm | |
| contact surface | nickel-plated | |
| Colour | white | |
| Rated category | CAT O | |
| Rated current | 6 A | |
| Connection | solder connection | |
| Touch safe | No | |
| Version | plug | |
| Rated Voltage | 30 VAC/60 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
