972354105 | Hirschmann Test & Measurement
4 mm socket, screw connection, mounting Ø 12.2 mm, CAT III, brown, 972354105
Unit Price (€ / pc.)
3.2606 € *
Available: 44 pcs.
Available in 6 Days: 750 pcs. - if ordered today
Total Price:
3.26 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2606 €
10 pcs.
3.0821 €
100 pcs.
2.8917 €
500 pcs.
2.7132 €
1000 pcs.
2.5347 €
*incl. VAT plus shipping costs
Subject to prior sale

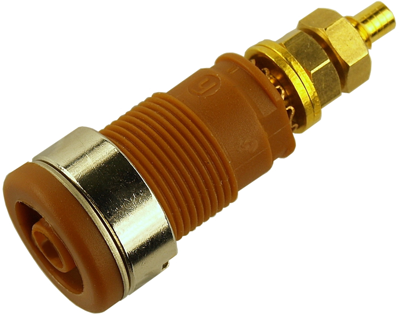

Laboratory connector, SEB 2600 G M4 BR, HIRSCHMANN
The SEB 2600 G M4 BR is a safety built-in socket with 4 mm diameter and it is touch-protected. It is used for installation into switch panels and equipment chassis with wall thicknesses up to 6 mm. The installation hole is 12.2 mm diameter and the tightening torque is 50 Ncm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 12.2 mm | |
| diameter | 4 mm | |
| Length | 39 mm | |
| Rated Voltage | 1000 V | |
| Connection | screw connection | |
| Colour | brown | |
| contact surface | gold-plated | |
| Rated category | CAT III | |
| Version | socket | |
| Touch safe | Yes | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | No |
| RoHS conform | Yes |
